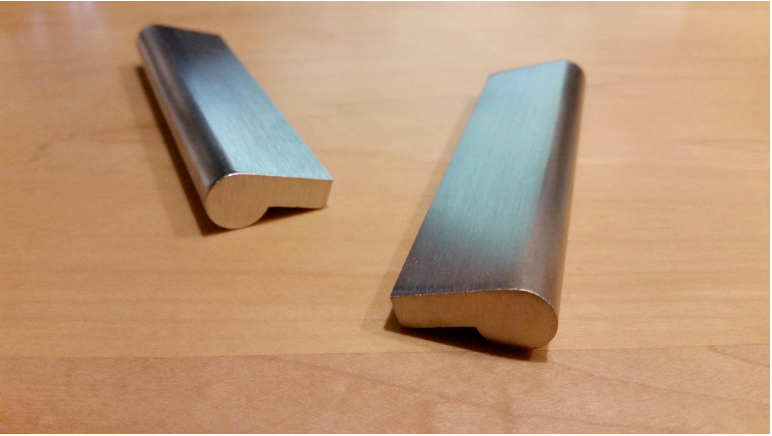

Our FCM-P-16 Edge Pull has a soft flat surface with a clean rolled beaded detail front that is a full 1⁄2 thick. Extruded out of Solid Aluminum for a clean smooth surface, we polish and plate or powder coat in any finish you require. Our standard finishes are based on the most popular requests but any custom finish can be achieved on this quality material.
Finishes:
Matte Black, Satin Chrome, Polish Chrome, Satin Nickel, Medium Antique Bronze, Polish Bras
Price varies by finish.
Need help deciding on a finish?
We are here and always eager to help!
| FCM P-16 -EDGE PULL 1/4” W-3/4 Bead x 1’’Deep |
MATTE BLACK SATIN CHROME POLISH CHROME | MATTE BLACK SATIN CHROME POLISH CHROME | MATTE BLACK SATIN CHROME POLISH CHROME | SATIN NICKEL MEDIUM ANTIQUE BRONZE POLISH BRASS/SATIN BRASS |
SATIN NICKEL MEDIUM ANTIQUE BRONZE POLISH BRASS/SATINBRASS |
SATIN NICKEL MEDIUM ANTIQUE BRONZE POLISH BRASS/SATIN BRASS |
||||
| PART NUMBER | Overall Length | Hole Location CTC | C/S Holes | Depth | 1-99 | 100-499 | 500-999 | 1-99 | 100-499 | 500-999 |
| FCM-P-16-S | 2-1/4” | 1-7/8” | 2 | 1” | $7.78 | $7.55 | $7.35 | $9.85 | $9.50 | $9.25 |
| FCM-P-16-SM | 3” | 2” | 2 | 1” | $9.80 | $9.40 | $8.85 | $13.55 | $12.25 | $11.00 |
| FCM-P-16-M | 4” | 3” | 2 | 1” | $11.98 | $10.60 | $9.65 | $16.45 | $15.20 | $14.55 |
| FCM-P-16-L | 6” | 5-5/8” | 2 | 1” | $16.25 | $15.80 | $13.50 | $25.00 | $24.00 | $22.00 |
| FCM-P-16-G | 12” | 5” | 3 | 1” | $28.55 | $26.45 | $25.00 | $35.00 | $33.00 | $31.00 |
Custom Options
We can customize this item to suit your specific needs, including but not limited to:
•Custom Lengths up to 8'
•Custom Finish
•Finished All Sides
Please contact us for further information on pricing and lead times.

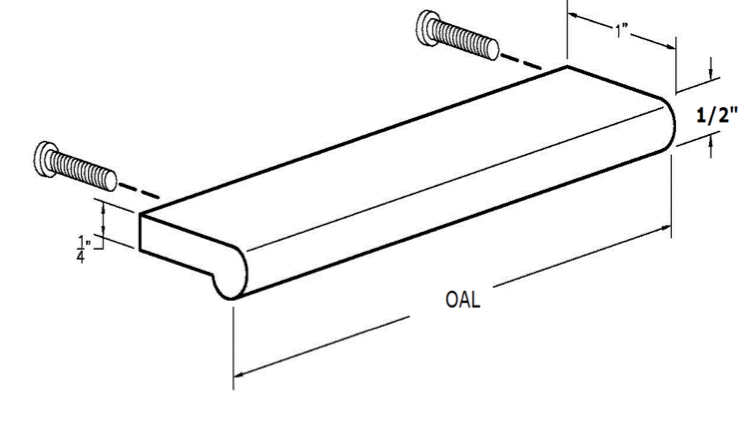

Installation Notes and Technical Drawing:
| Price List | Installation Sheet | TechnicalDrawing |
 |
