Heavy granite, dense wood slab, or oversize tops require heavier material and added gussets for correct support
Top plates are flush with length of base unless otherwise requested.
Top plates are centered on base but can be offset at your request as well.

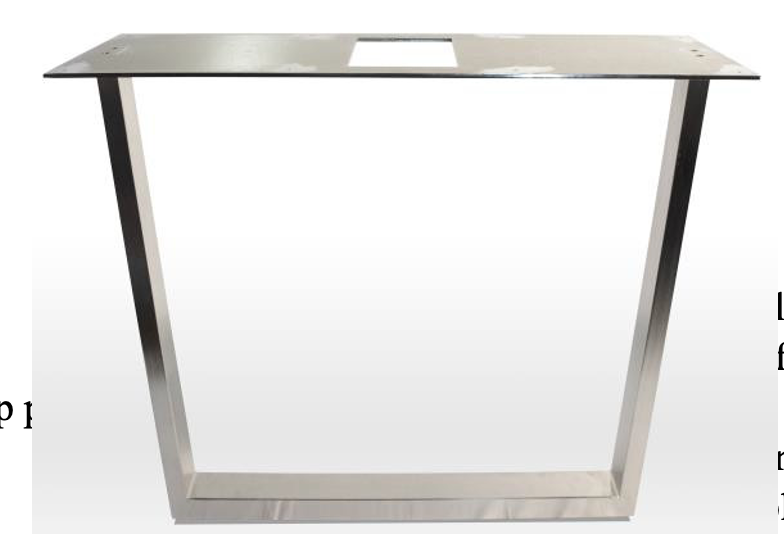

Holes can be added in top plate as shown above to give you direct access from your top to your base, and we can incorporate an additional box to house your electrical unit or additional items.
$50.00 add on for hole in top plate/please specify size.
Additional box: quoted based on your size/finish requirement.
Our standard taper layout is: small dimension at the bottom and large dimension at the top as shown.
You can have your base taper in the opposite direction as shown on the following page.
If you choose to taper
wider at the bottom, please specify this detail at time of order placement.
Standard material size on this design is 1-1/2” x 3 Rectangular tubing but we can
make any size you require.
FCM LOOP BASE WITH OR WITHOUT ACCESS HOLES: SPECIFICATIONS: Standard Height: 28”
Fabrication Lead Time: Powder Coated = 5 weeks. Plated = 6 Weeks.
Our FCM tubular version, open style base is designed as an option to our solid bar base, both for its design detail and to give you hidden cord access area that is not possible on our solid bar version.
Heavy granite, dense wood slab, or oversize tops require heavier material and added gussets for correct support. Please call for additional price on your size requirement.
When access holes are the option you need, we have strategically hidden the holes as much as possible. With (1) 2” round access (AH) hole on the inside wall only, 1” from the top plate and (1) 2” AH on the bottom side of the tubing at the floor, (facing the floor),
so that the outside of your base stays undisturbed and free from holes or cords.
Fabricated out of 1-1/2” x 3 rectangular tubing,
with crisp details, and highly finished to your specifications. (2) levelers at bottom on the end base style.
(4) levelers on the X base style
Open-End Base Height Modifications
Shorter: powder coated or plated, same price.
Taller up to 40.5: powder coated: add-on $95.00 Plated add-on $115.00
Open-X Base Height Modifications
Shorter: powder coated or plated, same price.
Taller up to 40.5: powder coated: add-on $125.00 Plated add-on $175.00
Add-on for Access Hole: $40.00 per hole. (AH)
Our standard hole size on this base is 2”
SPECIAL NOTE:
Polish and Satin Chrome may leave minimal ‘shadowing’ on inside corners due to plating anomalies. Nickel does not leave this ‘shadowing’.
Additional Sizes and Modifications are available for your heavy granite, marble or thicker, dense wood slab tops, heavier material will be used on any of these base designs Please call for quote.
Please specify finish when placing order:
Matte Black (MB). Silver (SV). White (WH). Satin Chrome (SC) Polish Chrome (PC) Satin Nickel (SN) Blackened Steel (BS)
Additional Sizes and Finishes are available. Quantity discounts are available.
| Maximum Top Size | Matte Black Silver or White | Satin Chrome | Polish Chrome | Satin Nickel | Blackened Steel | ||||||
| Item Number Base Size | |||||||||||
|
FCM-OETB-635-18/24x28H 18” Bottom x 24” Top x 28H |
30” Wide | $510 | $615 | $710 | $710 | $810 | |||||
|
FCM-OETB-635-24/30x28H 24” Bottom x 30” Top x 28H |
36” Wide | $530 | $645 | $735 | $735 | $830 | |||||
|
FCM-OETB-635-30/36x28H 30” Bottom x 36” Top x 28H |
42” Wide | $568 | $664 | $750 | $750 | $850 | |||||
|
FCM-OETB-635-36/42x28H 36” Bottom x 42” Top x 28H |
48” Wide | $585 | $688 | $779 | $779 | $875 | |||||
|
FCM-OETB-635-42/48x28H 42” Bottom x 48” Top x 28H |
54” Wide | $598 | $780 | $850 | $850 | $898 | |||||
|
FCM-OETB-635-48/54x28H 48” Bottom x 54” Top x 28H |
60” Wide | $650 | $799 | $890 | $890 | $970 | |||||
Please contact us for further information on pricing and lead times.
Installation Notes and Technical Drawing:
| Price List | Installation Sheet | TechnicalDrawing |
 |
