FCM-CT204 TAPERED CYLINDER BASE SPECIFICATIONS: STANDARD HEIGHT IS 28”
Fabricated out of 16-gauge material, welded seamless.
With mounting tabs at the top, and bottom tabs at the bottom for wood insert or bolting to floor.
Top and bottom are open.
**Add-on for plywood disc bottom and levelers, $80.00 Lot. Specify: Levelers (AL)
**For less than 28” height: add-on $75.00. For shorter height we may have to modify taper dimension.
**For taller, up to 48” height: add-on $120.00 up to 204-12/24 $150.00 add-on 204-18/24 and up.
**Please specify finish when placing order: Matte Black (MB). Silver (SV). White (WH).
Satin Stainless Steel (SSS). Polished Stainless Steel (PSS). MEDIUM ANTIQUE BRONZE (MAB).
**When adding doors into any cylinder you compromise the integrity of the Continuous round form. Therefore, when adding doors AND using heavy tops, FCM HIGHLY RECOMMENDS using an internal support structure to reinforce the strength of the cylinder.
** Add-On for Hinged Access Door $215.00. Door sizes: 6, 8 ,10, & 12” square, and rectangular too.
**Add-On for 2” Round Access Hole $50.00
** Add-On for internal support structure $200.00 (1” x 2” ribs welded inside of cylinder)
** Add –On for Top Plates instead of tabs (recommended for larger/heavier tops) $125.00
SPECIAL NOTE ABOUT DOORS ON TAPERED CYLINDERS:
Due to the tension on tapered cylinders, there may be a slight gab when door is shut.
** Add-On for Finished Top: Call for quote.
**Add-On for Dual Wheel Casters 200.00. Please specify (DWC).
**Automatic Discount 10 each = 5%. 20 each = 10%. Additional quantity discounts are available
**Top and bottom of cylinder is open, unless we add plywood disc noted above.
**Additional Finishes are available.
| Matte Black | Silver or White | Satin Stainless Steel | Polish stainless Steel | Medium Antique Bronze | ||
| Tapered Cylinder Base | Maximum Top Size | |||||
|
FCM-CT204-9/18 9” Top/18” Bottom |
36” | $595 | $615 | $775 | $925 | $1,250 |
|
FCM-CT204-10/20 10” Top/20” Bottom |
42” | $620 | $640 | $815 | $940 | $1,275 |
|
FCM-CT204-12/24 12” Top/24” Bottom |
48” | $640 | $660 | $830 | $960 | $1,420 |
|
FCM-CT204-18/24 18” Top/24” Bottom |
48” | $710 | $730 | $860 | $1,000 | $1,450 |
|
FCM-CT204-18/28 18” Top/28” Bottom |
54” | $720 | $740 | $870 | $1,100 | $1,475 |
|
FCM-CT204-18/36 18” Top/36” Bottom |
60” | $725 | $755 | $880 | $1,340 | $1,530 |
|
FCM-CT204-24/48 24” Top/48” Bottom |
72” | $820 | $890 | $980 | $1,550 | $1,785 |
Please contact us for further information on pricing and lead times.

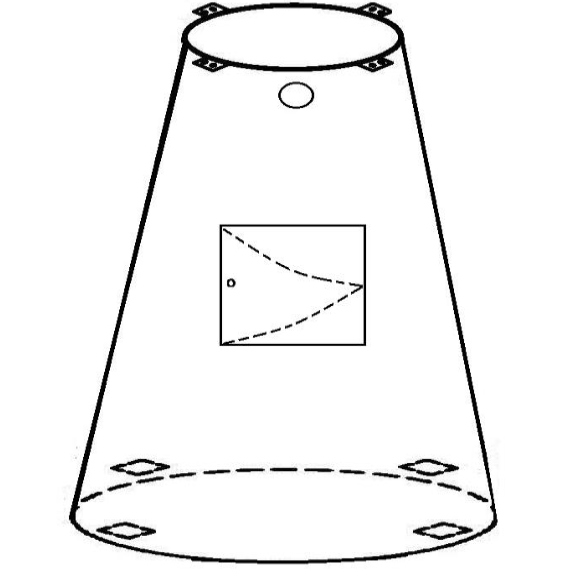

Installation Notes and Technical Drawing:
| Price List | Installation Sheet | TechnicalDrawing |
 |
