STRAIGHT BASE, TOP TO BOTTOM.
SAME AS 545 STYLE BUT NO TAPER TOP TO BOTTOM.
LOOP BASE SPECIFICATIONS:
Fabrication Lead Time: 4 Weeks Powder Coated. 5 Weeks Plated.
** Our Open Style Frame Base is fabricated out of Solid Bar-stock 1⁄2” thick x 2-1/2” wide, giving a slim sleek look, while being solid and sturdy. With crisp details, and highly finished to your specifications.
** SPECIAL NOTE: Polish and Satin Chrome may leave minimal ‘shadowing’ on inside corners due to plating anomalies. **Nickel does not leave this ‘shadowing’.
This base comes with mounting holes in the top bar. There is not a welded on top plate. Welded-on Top Plates of any size or location can be added at an additional cost. **Additional Sizes and Modifications are available. Thinner or heavier material can be used on any of these base designs.
**Top of Open Frame X Base can be modified to accept your electrical units, as shown below.
**Please call for sizing and quote.

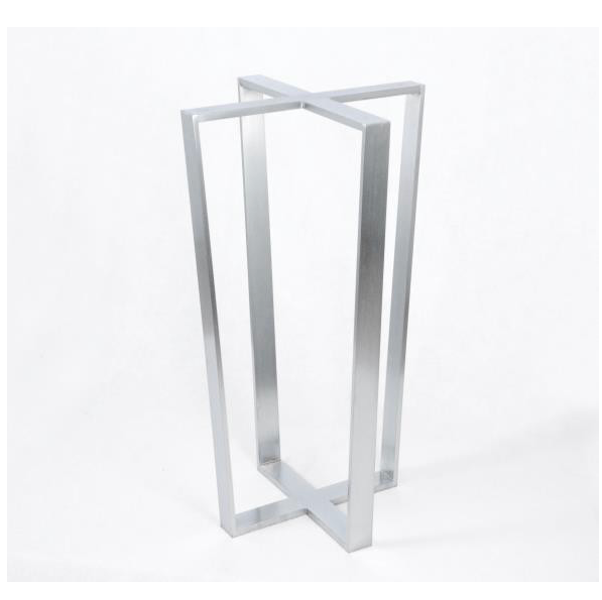

| FCM-555- Straight Loop Style X Base. | Maximum Top | Matte Black Silver or White | Satin Chrome | Polish Chrome | Polish Nickel Satin | Blackened Steel | ||||||||||
| STRAIGHT BASE, TOP TO BOTTOM. SAME AS 545 STYLE BUT NO TAPER TOP TO BOTTOM. PICTURE COMING SOON. |
FCM-OFSB-555-18X28H 18” BOTTOM X 18” TOP |
30” x 30” | 635 | 765 | 843 | 843 | 948 | |||||||||
|
FCM-OFST-555-24”x28H 24” BOTTOM X 24” TOP |
36” x 36” | 686 | 817 | 896 | 896 | 1038 | ||||||||||
|
FCM-OFST-555-30”x28H 30” BOTTOM X 30” TOP |
42” x 42” | 738 | 870 | 948 | 948 | 1127 | ||||||||||
|
FCM-OFST-555-36”x28H 36” BOTTOM X 36” TOP |
48” x 48” | 791 | 922 | 1000 | 1000 | 1216 | ||||||||||
|
FCM-OFST-555-42”x28H 42” BOTTOM X 42” TOP |
54” x 54” | 843 |
SSS 990 |
PSS 1169 |
XXX | 1305 | ||||||||||
|
FCM-OFST-555-48”x28H 48” BOTTOM X 48” TOP |
60” x 60” | 896 |
SSS 1034 |
PSS 1363 |
XXX | 1395 | ||||||||||
| FCM-OFST-555-54”x28H 54” BOTTOM X 54” TOP | 66” x 66” | 948 | SSS 1168 | PSS 1557 | XXX | 1484 | ||||||||||
|
FCM-OFST-555-60”x28H 60” BOTTOM X 60” TOP |
72” x 72” | 1000 |
SSS 1258 |
PSS 1752 |
XXX | 1573 | ||||||||||
| FCM-OFST-555-66”x28H 66” BOTTOM X 66” TOP | 78” x 78” | 1053 | SSS 1347 | PSS 1946 | XXX | 1665 | ||||||||||
|
STRAIGHT BASE TOP TO BOTTOM. continued. |
FCM-OFST-555-78”x28H 78” BOTTOM X 78” TOP |
90” x 90” | 1106 |
SSS 1437 |
PSS 2140 |
XXX | 1752 | |||||||||
|
FCM-OFST-555-84”x28H 84” BOTTOM X 84” TOP |
96” x 96” | 1158 |
SSS 1526 |
PSS 2334 |
XXX | 1841 | ||||||||||
|
FCM-OFST-555-90”x28H 90” BOTTOM X 90” TOP |
102” x 102” | 1210 |
SSS 1615 |
PSS 2529 |
XXX | 1930 | ||||||||||
|
FCM-OFST-555-96”x28H 96” BOTTOM X 96” TOP |
108” x 108” | 1263 |
SSS 1704 |
PSS 2723 |
XXX | 2019 | ||||||||||
Please contact us for further information on pricing and lead times.
Installation Notes and Technical Drawing:
| Price List | Installation Sheet | TechnicalDrawing |
 |
