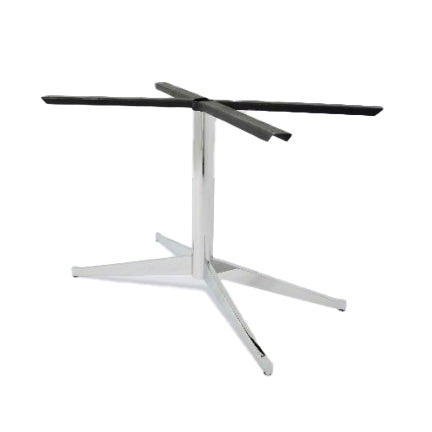

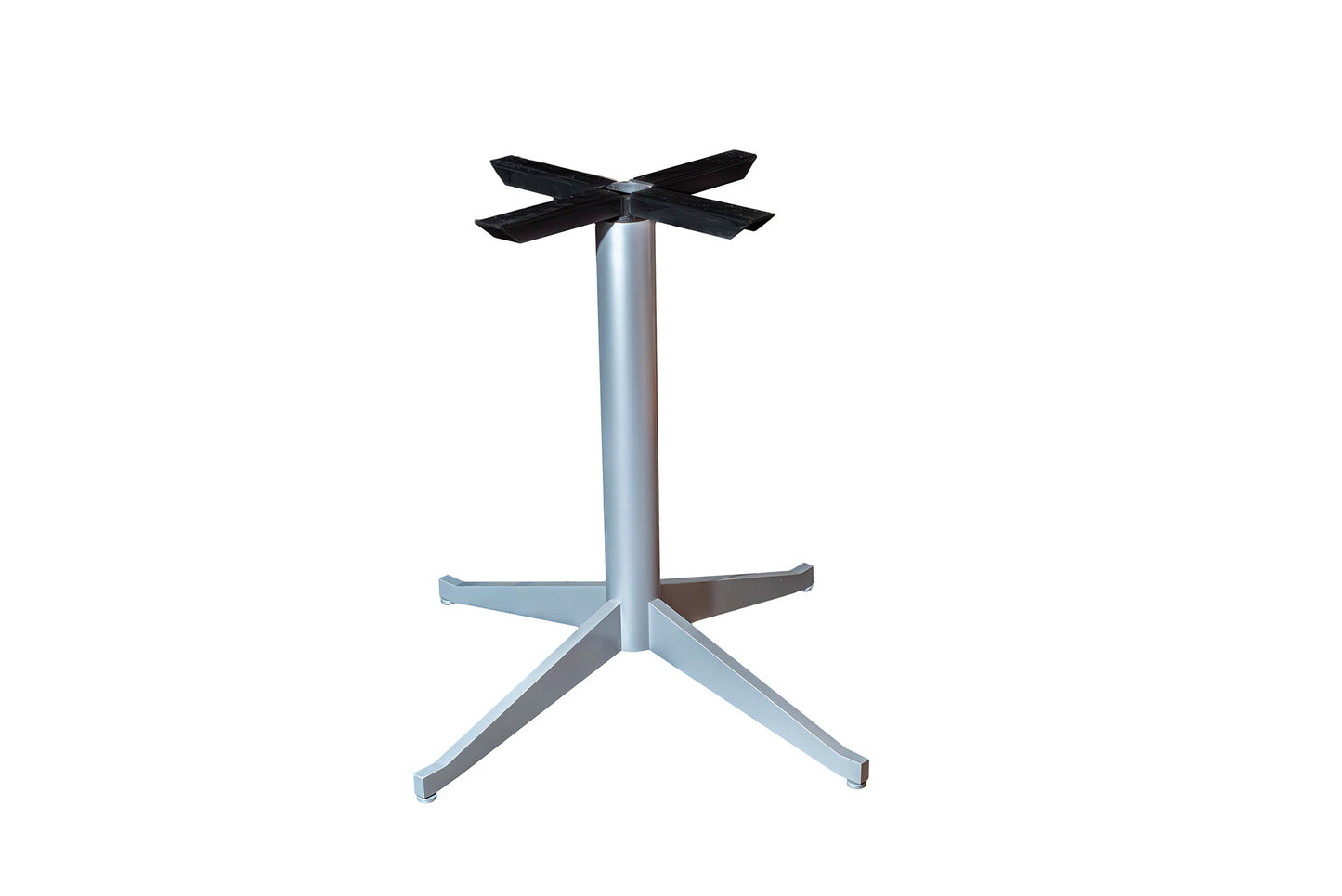

FCM-1100 PEDESTAL BASE

FCM-1100 PEDESTAL BASE SPECIFICATIONS: STANDARD HEIGHT IS 28”.

All height variations are available.

This is our Top of the Line, Most Popular Base.
Highly Finished in the color of your choice and Virtually Flawless. With a full 3/4” thick solid legs gently sloping up to meet the 3” diameter column. The legs are a full 3” High at the column and taper down to 1-1/2” at the floor. Floating 2-1/4” above the floor at the center of the column.
Solid metal levelers match the finish of your base, with padded bottoms to protect your flooring.
Column is a solid 1⁄4” thick and is part of the hidden support system, with reinforced top channel supports for added rigidity.

Please specify finish when placing order: Matte Black (MB). Silver (SV). White (WH). Satin Chrome (SC). Polished Chrome (PC). Satin Nickel (SN). MEDIUM ANTIQUE BRONZE (MAB).

**TWO PIECE TOPS CANNOT BE USED ON SINGLE COLUMN BASES**

FOR GRANITE TOPS AND OVERSIZE TOPS
WE RECOMMEND OUR 4” COLUMN WITH SPECIAL HEAVY-DUTY CHANNEL. 4” Round column increases the size of your base by 2” in width and length.

** ADD ON IS $200.00 PER COLUMN. **

** T-Base Style: Add-On for special height shorter or taller up to 42” for single column: $95.00 each. ** T-Base available with 2, 3 or 4 sided channel top.

** Single Column Bases: Add-On for special height shorter or taller up to 42”: $195.00 each.** Multi Column Bases: Add-On for special height shorter or taller per column: $110.00 each.

** WHEN INCREASING HEIGHT OVER 36” PLEASE GO UP ONE BASE SIZE.

**Top and bottom of column is open-with the exception of four socket-head screws-at bottom only. See specific details below.

** Add-On for Access Hole directly in Column, please specify: (AH) $40.00 per hole. Standard hole diameter is 2” on 3” and 4” column. Can be modified at your request.

**Add-On for Dual Wheel Casters $200.00. Please specify (DWC). Special Note: Dual Wheel Casters will change the height. In order to maintain original height, we will need to modify top support. Add-on for Special Height above, will also apply.

**Automatic Discount 15 each = 8%. **Additional Finishes are available

	Maximum Top Width	Matte Black	Silver or White	Satin Chrome	Polish Chrome	Satin Nickel	Medium Antique Bronze
PEDESTAL SIZE	Maximum Top Width	Matte Black	Silver or White	Satin Chrome	Polish Chrome	Satin Nickel	Medium Antique Bronze
FCM-1100-T-BASE-24	36”	274	293	318	339	363	417
FCM-1100-T-BASE-28	42”	283	303	326	347	374	427
FCM-1100-T-BASE-32	48”	285	307	337	354	381	439
FCM-1100-T-BASE-36	54”	300	313	357	373	392	447
FCM-1100-T-BASE-40	60”	311	333	359	384	404	461
FCM-1100-T-BASE-48	72”	316	340	363	394	414	473
FCM-1100-SQ24 24 X 24 SQUARE	36”	548	587	637	677	725	834
FCM-1100-SQ28 28 X 28 SQUARE	42”	566	604	652	692	739	853
FCM-1100-SQ32 32 X 32 SQUARE	48”	571	613	674	705	762	878
FCM-1100-SQ36 36 X 36 SQUARE	54”	598	624	713	746	784	894
FCM-1100-SQ40 40 X 40 SQUARE	60”	621	665	717	768	807	922
FCM-1100-SQ48 48 X 48 SQUARE	72”	631	679	725	788	828	944
TWO PIECE TOPS CANNOT BE USED ON SINGLE COLUMN BASES

FCM-1100-SCS-1732 17 X 32 SCISSOR For Granite Top, use 4” Column & HD Channels	24” X 48”	604	655	710	743	776	929
FCM-1100-SCS-1836 18 X 36 SCISSOR For Granite Top, use 4” Column & HD Channels	30” X 60”	626	677	732	765	798	951
FCM-1100-SCS-2142 21 X 42 SCISSOR For Granite Top, use 4” Column & HD Channels	42” X 84”	658	708	776	820	845	999
FCM-1100-SCS-2442 24 X 42 SCISSOR For Granite Top, use 4” Column & HD Channels	44” X 84”	669	723	787	831	867	1241
FCM-1100-SCS-2848 28 X 48 SCISSOR For Granite Top, use 4” Column & HD Channels	48” X 96”	839	877	1072	1095	1114	1254
FCM-1100-SCS-3050 30 X 50 SCISSOR W/4” RD COLUMN & HEAVY DUTY TOP CHANNEL	54” X 96”	1062	1097	1304	1320	1414	1595
TWO PIECE TOPS CANNOT BE USED ON SINGLE COLUMN BASES FOR ALL GRANITE TOPS WE RECOMMEND OUR 4” COLUMN WITH SPECIAL HEAVY-DUTY CHANNEL. SEE BELOW FOR DETAILS.

PEDESTAL SIZE	Maximum Top Width	Matte Black	Silver or White	Satin Chrome	Polish Chrome	Satin Nickel	Medium Antique Bronze
Standard End Layout is 45 Degree. Can be modified up to 180 Degree.

FCM-1100-DBL-C2142 21 X 42 Double Column	42” X 84”	1350	1385	1400	1500	1600	1950
FCM-1100-DBL-C2848 28 X 48 Double Column	48” X 96”	1393	1436	1480	1532	1645	2000
FCM-1100-DBL-C3072 30 X 72 Double Column	48” X 120”	1416	1458	1524	1576	1676	2022
FCM-1100-DBL-C3496 34 X 96 Double Column	48” X 144”	1456	1499	1568	1609	1802	2039
FCM-1100-DBL-41112 41 X 112 Double Column 4” Round Column/ Heavy Duty Top Support	60” X 144”	1786	1829	1931	1961	1934	2391
FCM-1100-DBL-41112 41 X 112 Double Column 4” Round Column/ Heavy Duty Top Support	72” X 144”	1786	1829	1931	1961	2154	2391

PEDESTAL SIZE	Maximum Top Width	Matt Black	Silver or White	Satin Chrome	Polish Chrome	Satin Nickel	Medium Antique Bronze
Standard End Layout is 45 Degree. Can be modified up to 180 Degree.
FCM-1100-TRPL-C28144 24 X 144 Triple Column	48” X 144”	2075	2191	2305	2396	2431	2858
FCM-1100-TRPL C26156 26 X 156 Triple Column	54” X 192”	2192	2229	2374	2418	2459	2979
FCM-1100-TRPL-C26180 36 X 180 Triple Column	60” X 204”	2310	2497	2618	2748	2838	3298

Standard End Layout is 45 Degree. Can be modified up to 180 Degree.

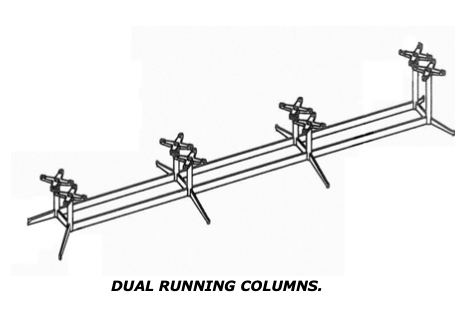

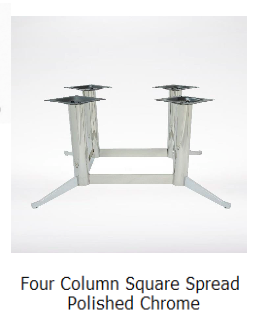

FCM-1100-4 C5204 36 x 204 Four Column	60” x 240”	2922	2968	3166	3280	3278	3973
Standard End Layout is 45 Degree. Can be modified up to 180 Degree.

Please contact us for further information on pricing and lead times.

Installation Notes and Technical Drawing:

Price List	Installation Sheet	TechnicalDrawing
